MC nylon rod
Share to
- Product Description
-
Why Choose MC Nylon?
MC Nylon (Monomer Casting Nylon), with the concept of “replacing steel with plastic”, is a lightweight yet high-strength engineering plastic. It offers self-lubrication, wear resistance, corrosion resistance, and insulation, making it widely applicable in industrial equipment. It can effectively replace metals such as copper, stainless steel, and aluminum alloys.
Key Advantages
Lightweight & Strong: Only 1/7 the weight of copper, yet capable of handling high-strength applications.
Ultra-Low Friction: Friction coefficient is 8.8 times lower than steel and 8.3 times lower than copper.
Durable & Long-Lasting: Service life is generally extended by 4–5 times, reducing maintenance costs.
Versatile Applications: Pulleys, gears, guide wheels, pump impellers, bearings, bushings, pins, valve bodies, and more.
Product Highlights
⭐ Quality Assurance: Free of bubbles and impurities, density of 1.152 g/cm³, with stable structure.
⭐ Multiple Sizes: Standard length of 1m, diameters ranging from 30mm–300mm, customizable upon request.
⭐ Color Options: Blue, natural, black, green, red, and yellow; custom colors available.
⭐ High Surface Hardness: Ensures wear resistance and long-term durability.Product Parameters
Color: Blue / Natural / Black / Green / Red / Yellow (customizable)
Surface Quality: Smooth and clean, stable dimensions, no bubble defects
Diameter (mm) Diameter Tolerance (mm) Unit Weight (Kg) Diameter (mm) Diameter Tolerance ( mm ) Unit Weight (Kg) 30 +0.5+1.5 0.85 140 +1.2+4.1 18.46 35 +0.5+1.5 1.15 150 +1.2+4.1 21.2 40 +0.5+1.5 1.51 160 +1.3+4.5 24.12 45 +0.5+1.5 1.91 170 +1.3+4.5 27.22 50 +0.5+1.5 2.36 180 +2+7 30.52 55 +0.5+1.5 2.85 190 +2+7 34.01 60 +0.5+1.5 3.39 200 +2+7 37.68 65 +0.5+1.8 3.98 210 +2+7 40.98 70 +0.5+1.8 4.62 220 +2+7 46.80 75 +0.5+1.8 5.30 230 +2+7 50.96 80 +0.7+2.3 6.03 240 +2+7 55.16 85 +0.7+2.3 6.81 250 +2+7 59.16 90 +1+2.7 7.63 260 +2+7 63.86 95 +1+2.7 8.5 270 +2+7 69.08 100 +1+2.9 9.42 280 +2+7 74.29 110 +1+2.9 11.4 290 +2+7 79.50 120 +1+3.3 13.57 300 +2+7 87.31 130 +1.2+4.1 15.92 MC901/MC907 Rods Thickness/mm Thickness Tolerance/mm Standard Size/mm
1020×2020 Unit Weight/kg10 +0.5+2.5 24 20 +0.5+2.5 48 30 +0.5+3 72 40 +0.5+3 96 50 +0.5+3 120 60 +0.5+3.5 144 70 +0.5+4.5 168 80 +0.5+4.5 192 90 +0.5+4.5 216 100 +0.5+4.5 240 MC901/MC907 Plates Performance Indicators
Serial Number Item Unit Index Test Method Remarks 1 Tensile Strength MPa 76.6 ISO 527-2:2012 --- 2 Elongation at Break % 47 ISO 527-2:2012 --- 3 Compressive Strength MPa 118 ISO 604:2002 --- 4 Flexural Strength MPa 127 ISO 178:2010 --- 5 Shore Hardness Shore D 83 ISO 868:2003 --- 6 Melting Point ℃ 211 ISO 11357-3:2018 --- 7 Coefficient of Linear Thermal Expansion (25°℃-80°C) k- 96.5×10 -6 ISO 11359-2:1999 --- 8 Surface Resistivity Ω 4.84×10 15 IEC 60093:1980 --- 9 Volume Resistivity Ω·cm 9.19×10 15 IEC 60093:1980 --- 10 Relative Permittivity (100Hz) -- 3.91 IEC 60250:1969 --- 11 Density g/cm³ 1.152 ISO 1183-1:2004 --- 12 Water absorption % 0.8 IS0 62:2008 --- 13 Cantilever beam kJ/m² 9.3 ISO 180:2000 Fracture type; C 14 Coefficient of friction -- Static coefficient of friction: 0.150
Dynamic coefficient of friction: 0.128ISO 8295-1995 --- 15 Limiting oxygen index % 23.3 ISO 4589-2:2017 --- 16 Heat deflection temperature under load ℃ 67 ISO 75-1:2013 Flat at 120°C/h, 1.8MPa

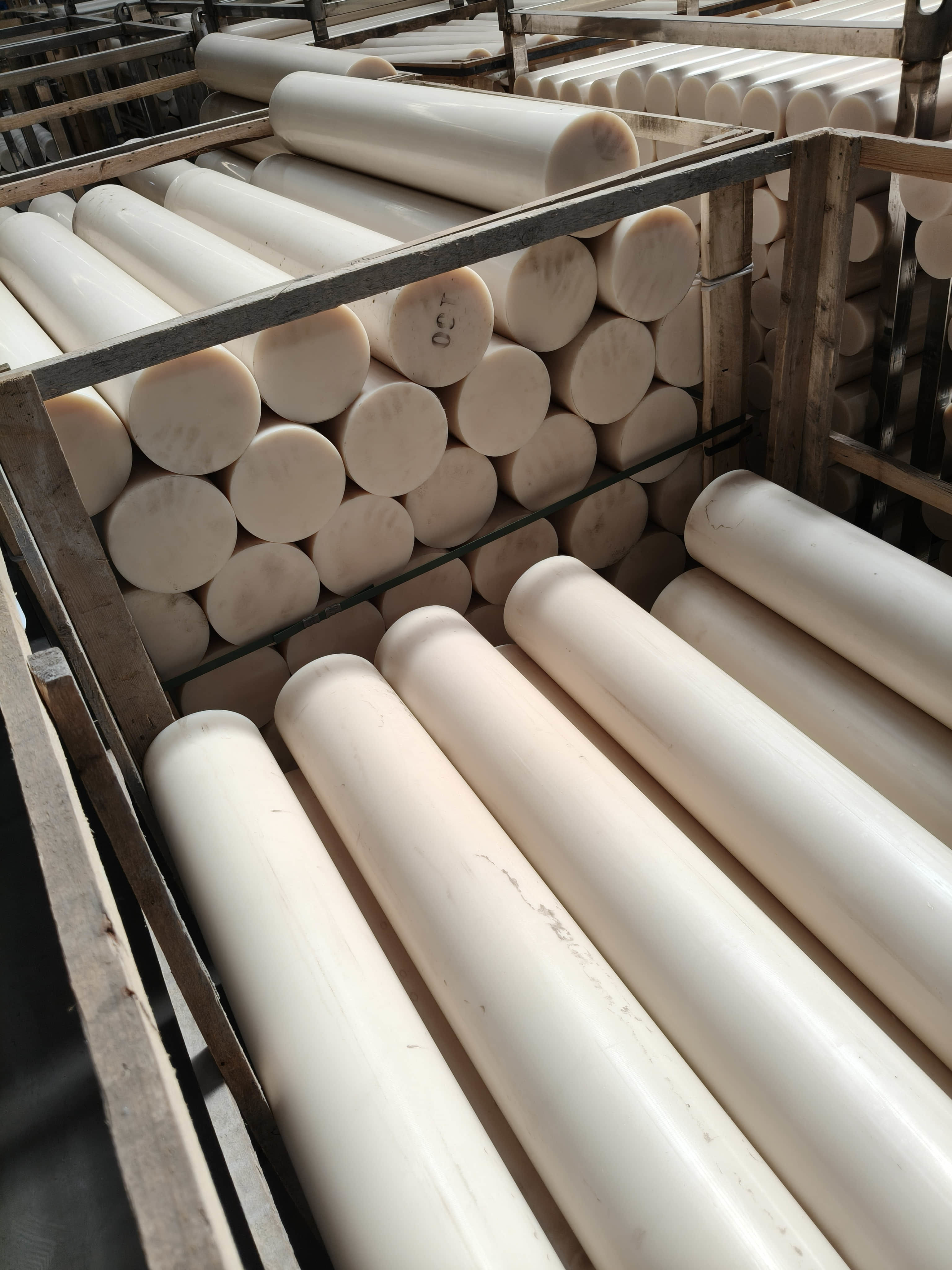

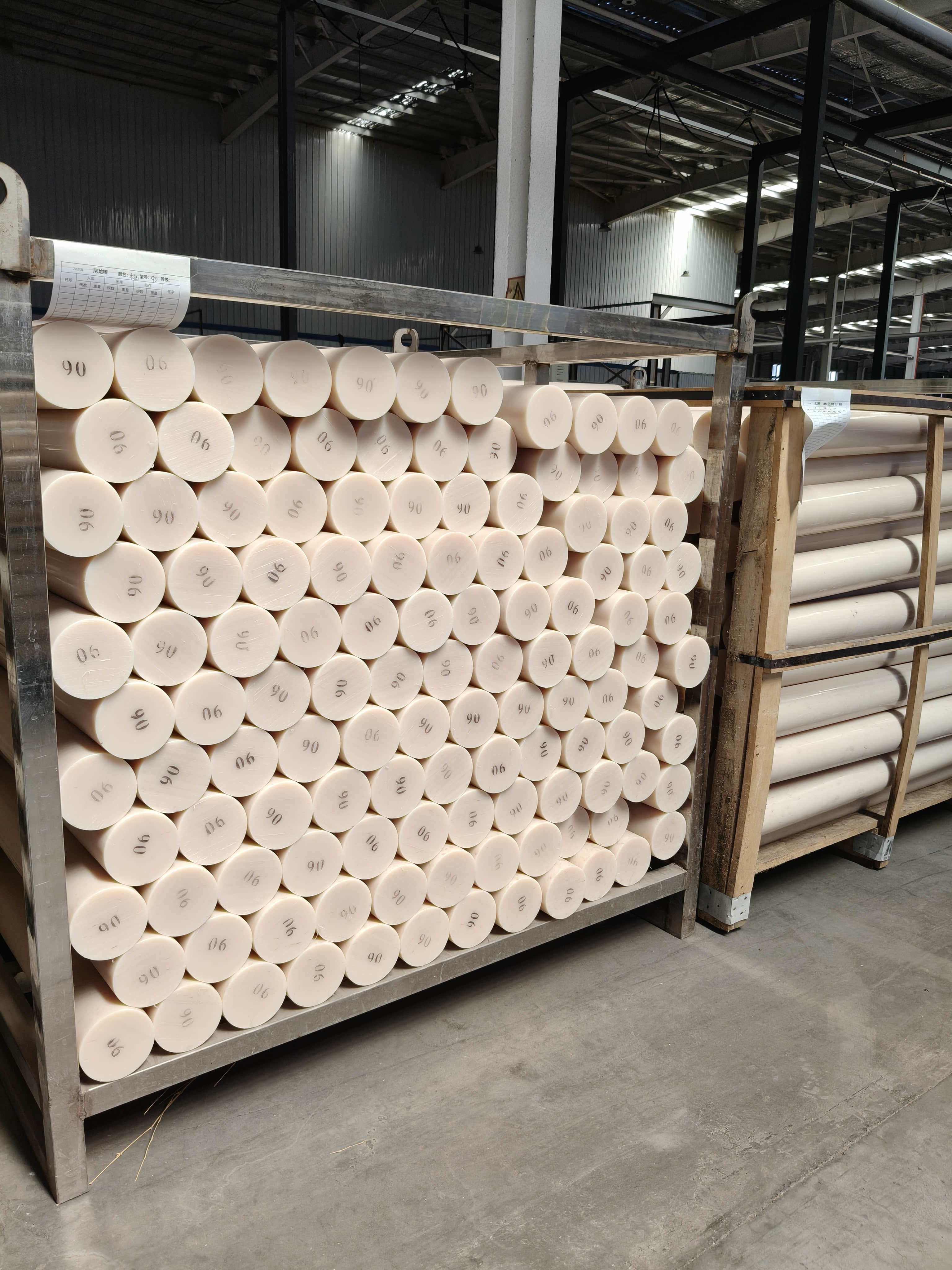

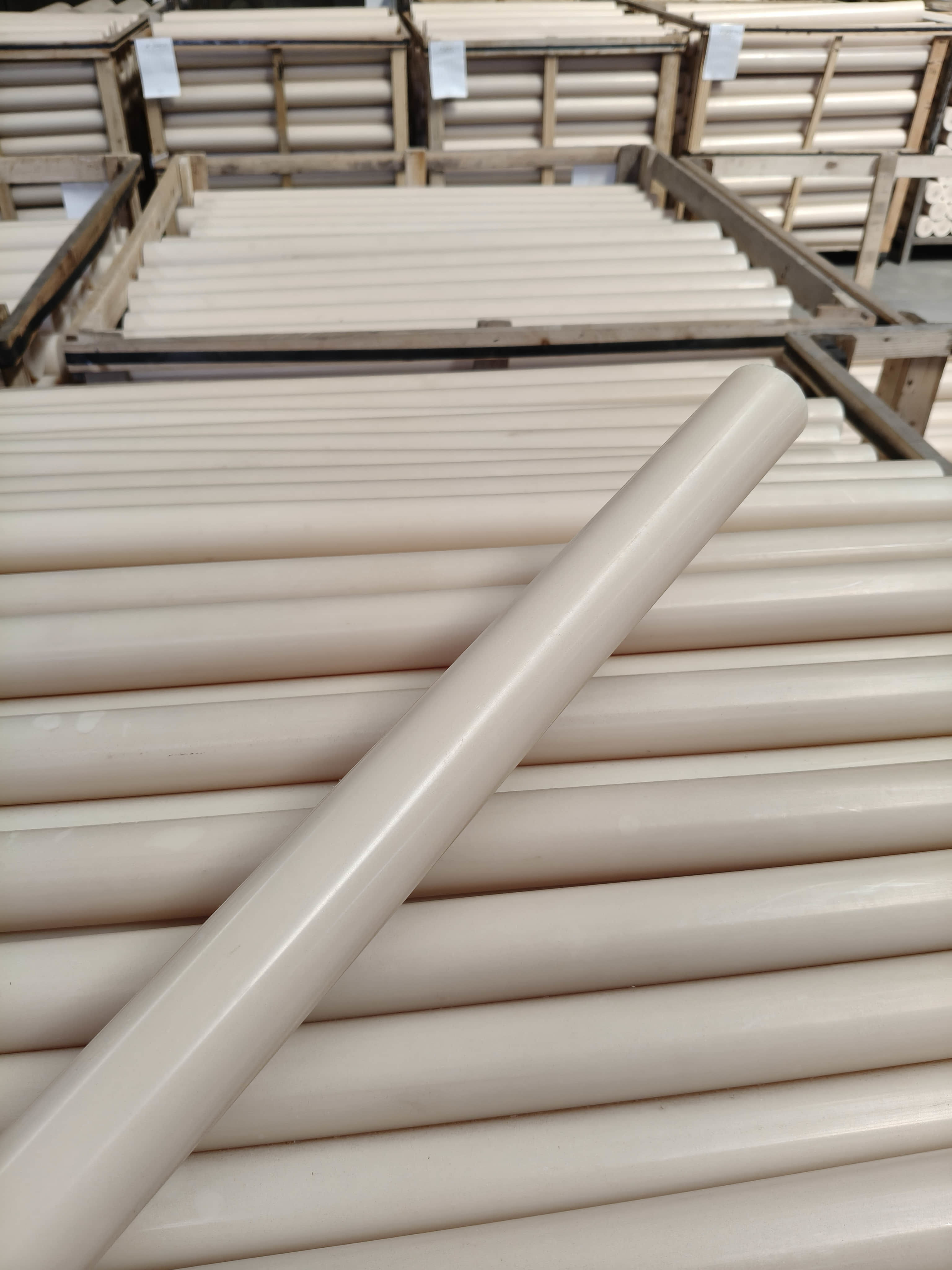

17 Dielectric strength KV/mm 17.8 IEC 60243-1:2013 --- Product packaging
